Logiq AirIQ Air Bag Load Assist to suit Chev 1500 2019 +

Logiq AirIQ Air Bag Load Assist to suit
Chev 1500 2019 +

Product Information

LOGIQ Air Spring Kits are carefully engineered for each truck to utilize the latest air spring technology, providing the ultimate blend of ride quality and load stability, in a 100% factory assembled and READY to install package. This kit is designed to provide more than enough load support for your GM half-ton, easily mounting over the axle with a durable single air sleeve configuration. This kit provides maximum travel while still utilizing your factory bumpstops.

WARNING - Never exceed manufacturer's Maximum Payload or GVWR

Fitment Notes

Trucks equipped with factory rear height sensors require additional part number 88-31190-1. Does not fit 3.0L diesel trucks paired with single exit exhaust. Does not fit ZR2 or AT4X models. AT4/Trail Boss or or trucks with 1-3" rear lift require additional Spacer Kit 88-91003. 1-3" rear lifts without bumpstop spacers require additional Spacer Kits 88-31190-3 & 88-91003. Not compatible with rear lifts larger than 3". Not compatible with aftermarket fuel tanks. Includes heat wrap kit for tailpipe.

5th Wheel Hitch Compatibility

Confirmed 5th Wheel Hitch Compatibility: B&W - BWGNRK1019, B&W - BWRVK2504, DEMCO - DM8552034, DEMCO - DM8553019, DEMCO - DM8551011

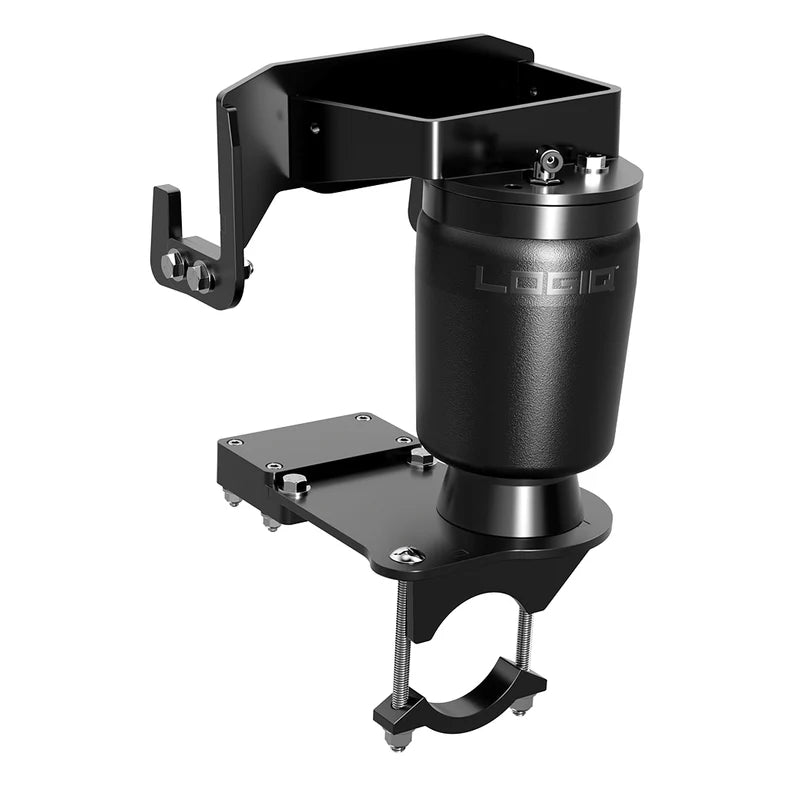

Kit Includes

(1) Driver Side Air Spring Assembly
(1) Passenger Side Air Spring Assembly
(1) Hardware Kit
(1) Manual Inflation Kit
(1) Exhaust Heat Wrap Kit

Tec Specs

Air Spring Location: Axle Mounted Inboard Frame Rails
Air Spring Quantity: 2
Load Capacity: 3,200 lbs @ 150 psi
Maximum Pressure: 150 psi
Minimum Pressure: 5 psi
